Horizontal Balancing Machines HM 4 - HM 50 - Schenck Australia

  • Universally applicable
  • High balancing accuracy
  • Easy to upgrade through modular construction and a wide range of accessories
  • Hard-bearing principle ensures quick change-over from one workpiece to the next
  • Measuring instrument CAB 820, optional CAB 920 - the high end solution
  • Full range of safety equipment for all protection classes

Special features

  • Easy to operate – hard-bearing principle eliminates the need for calibration runs
  • Provides for correction in two planes or separate correction of static and couple unbalance

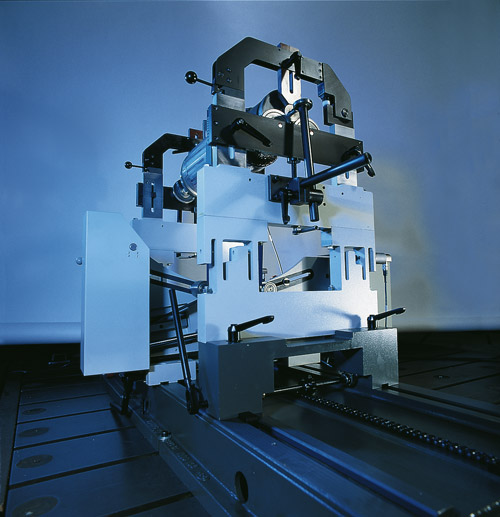

  • Rotors can be mounted on their original shafts or on mounting arbors, optionally with mounted anti-friction bearings

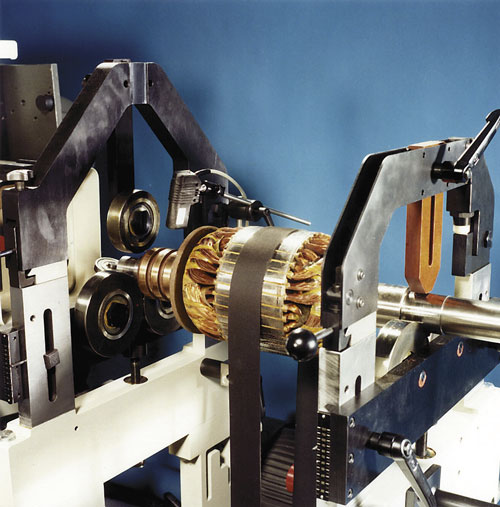

  • Angle indexing display in case of belt drive
  • Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time
  • Upgradeable by many additional modules e.g. for mass correction
Design

Range of application

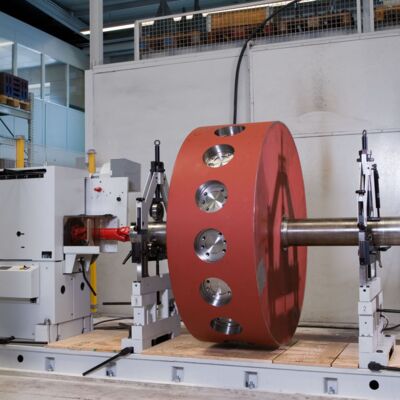

Universal balancing machines series HM are conceived for highly precise balancing of a wide spectrum of rotors. They are suitable for balancing cylindrical rotors with integral shaft journals and for balancing disc shaped rotors on balancing arbors.

Permanent calibration, ergonomic design and a logical operating sequence facilitate operation.

Their modular design principle and a wide range of accessories make the machine highly flexible.

Schenck universal balancing machines series HM are a highly efficient investment both for one-off rotors and for small batches.

Sequence of operations

  • Manually load work-piece on the bearing pedestals, close hold-down bearings and connect drive (belt drive or drive shaft)
  • Close protection device and start automatic measuring sequence:
  • Acceleration, determination and display of the unbalance on the measuring instrument, braking. The readout is retained on the measuring instrument even after the measuring run has ended.

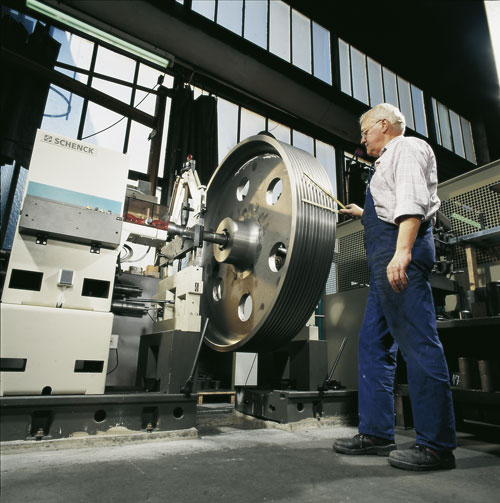

  • Open protection device, manually correct unbalance (if required).
  • Check correction result (with measuring instrument displaying whether the tolerance has been achieved) and unload the rotor from the machine.

Technical data
Technical data at a glance    HM 4  HM 40  HM 5  HM 50
Measuring instrument    CAB 820  CAB 820  CAB 820  CAB 820
Roller carriages    •  •  •  •
Underslung belt drive BU    •  •
End drive        •  •
Protective device as per ISO 7475    •  •  •  •
Rotor
Weight, max.  [kg]  1500  3000  5500  8000
Diameter, max. 2)  [mm]  1600  1600  1600  1600
Bearing distance, max. 2)  [mm]  1750  1750  2000  1980
Bearing journal diameter 2)  [mm]  12 - 200  15 - 240  18 - 280  25 - 380
Machine

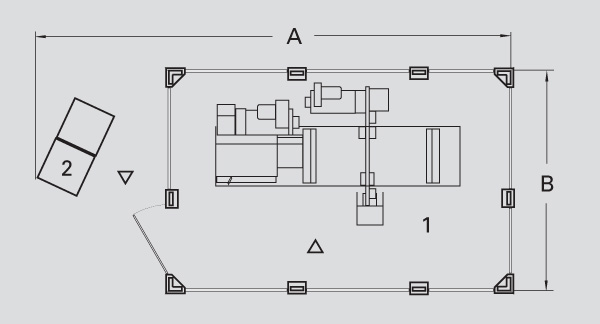

Width A 1)  [mm]  3150  3150  4200  4200
Depth B 1)  [mm]  2700  2700  3750  3750
Height C 1)  [mm]  2000  2000  2000  2000
Balancing speed, min.  [min -1]  120  120  120  120
MARU 4)  [gmm]  16  20
Air pressure  [kPa]  600  600  600  600
Power supply 3)  [V]  400 3)  400 3)  400 3)  400 3)
Drive power 2)  [kW]  7,5  7,5  7,5  7,5
Sound Pressure Level (with belt drive)  [LpA [dB(A)]]  70 - 80   70 - 80   70 - 80   70 - 80

Basic machine  Order-Nr.  R0060700.01  R0060800.01  R0060900.01  R0061000.01
Options
Measuring unit CAB 920  Order-Nr.  R0060701.01  R0060801.01  R0060901.01  R0061001.01
Software options    o.r.  o.r.  o.r.  o.r.
Underslung belt drive BU  Order-Nr.  R0060203.01  R0060203.01
End drive  Order-Nr.  •  •
Various roller carriages    o.r.  o.r.  o.r.  o.r.
Report printer  Order-Nr.  R0060705.01  R0060805.01  R0060905.01  R0061005.01
Mass correction system  Order-Nr.  o.r.  o.r.  o.r.  o.r.

1) Data non-binding to DIN 1319, 95% probability, work-piece dependent
2) Other data on request
3) Main configuration: 3 / PE AC 500Hz 400 V +6 / -10%
4) Minimum achievable residual unbalance per balancing plane
5) Up to HM10 with protection class C, in all other cases protection class B
o.r. On request
